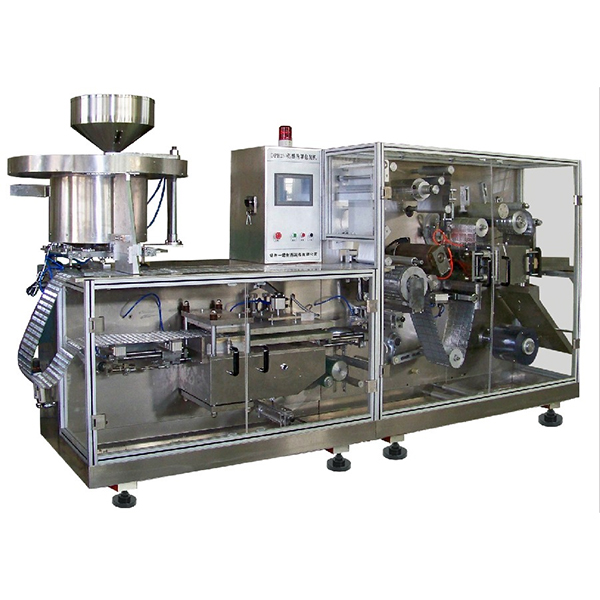

DPH260輥板式泡罩包裝機
DPH260 ROLLER AND PLATE COMBINING TYPE BLISTER PACKING MACHINE
特點
Features
板式正壓吹塑成型、輥式熱封、包裝效率高。
可與通用上料機、掉頭上料機、圓盤上料機配套使用。
PLC控制無級變頻調速，調整范圍廣泛，傳動噪音低。
伺服電機步進，操作調整方便。
光電跟蹤、浮動對標。
自動打批號，壓斷裂線。
“品”字形無邊沖裁，節(jié)省包裝材料。
主要元器件均采用進口。
整機采用全封閉方式，符合GMP要求。
可適用鋁塑、鋁鋁包裝。
The plate forming by positive pressure the roller type heating sealing having
higher packing speed.
It is possible to form a complete set with general feeders turning feeders and
disk feeders.
Controlled by PLC the stepless frequency conversion variable speeds having
wide adjustment range extreme low noise.
Photoelectric tracking device and floating alignment mark.
Servo motor stepper, easy operation and adjustment.
Automatically printing serial numbers and pressing breaking line.
Main components are imported.
The machine is totally-enclosed accords with GMP requirements.
"Goods"-shaped boundless blanking, save packing material.
Suitable for aluminum plastic, aluminum aluminum packaging.
使用范圍
Application
各種規(guī)格的膠囊、素片、糖衣片、膠丸及異型片，巧克力豆、口香糖等小食品。
Applicable for different specifications of capsules tablets sugar - coated tablets
pills and grotesque tablets chewing gum and chocolate beans etc.small food.
技術參數
Specifications
|
最大成型深度Max forming depth
|
10mm
|
|
沖裁次數Cutting frequency
|
≤150次／分(times／min)
|
|
包裝效率Packing speed
|
450板／分(plates／min)
|
|
包裝材料Packing material
|
PVC260×0.25mm
PTP 260x0.02mm
|
|
最大步進距離Max inching
|
230mm
|
|
耗氣量Air consumption
|
300L／min
|
|
耗水量Water consumption
|
6L／min
|
|
電源總功率Installed power
|
13kW
|
|
電壓Voltage
|
380V／50Hz
|
外形尺寸（長×寬×高）
Size L×W×H (mm)
|
3500×1050×1800
|
|
重量（公斤）Weight( kg)
|
3000
|
